Modal Testing of an FSAE Chassis for Mode Shape and Rigid Body Mode Identification

A Brief Synopsis

In this project, impact hammer testing is performed in a FSAE chassis to find the rigid body modes and structural mode shapes. Roving hammer testing is performed on the points shown in the figure while the accelerometer is placed on point 1. The mode shapes are determined by using the imaginary parts of the impulse responses.

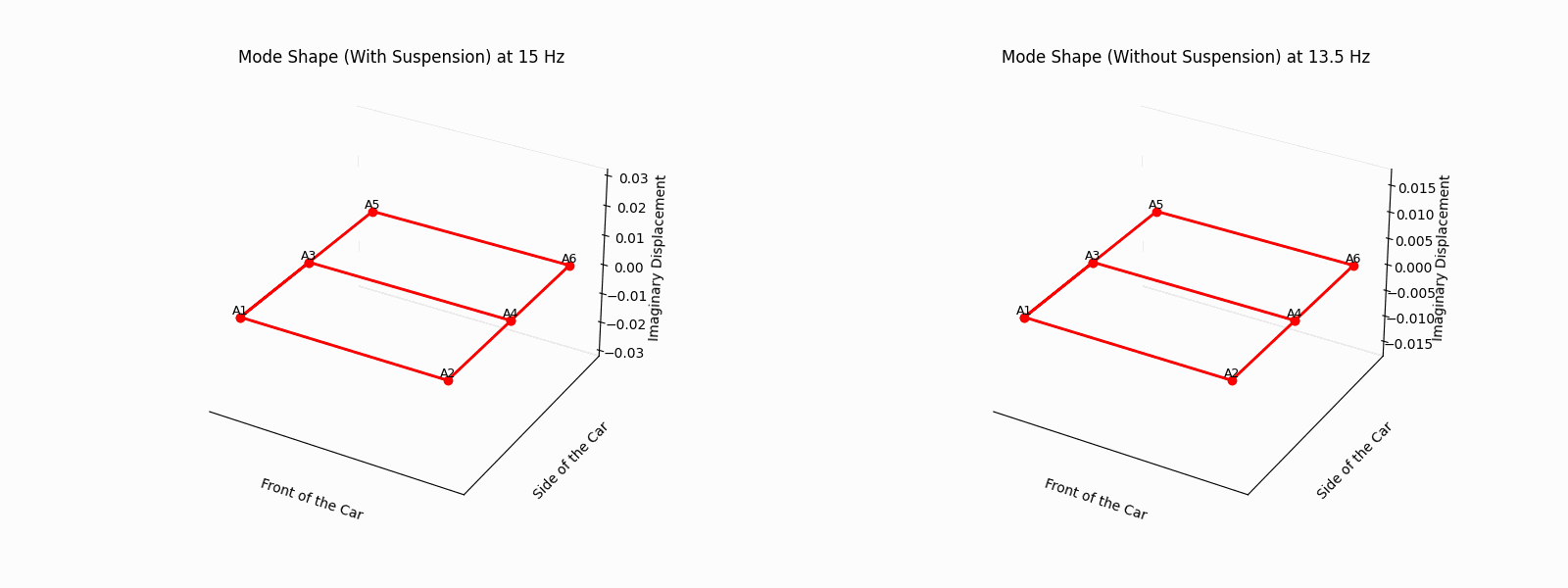

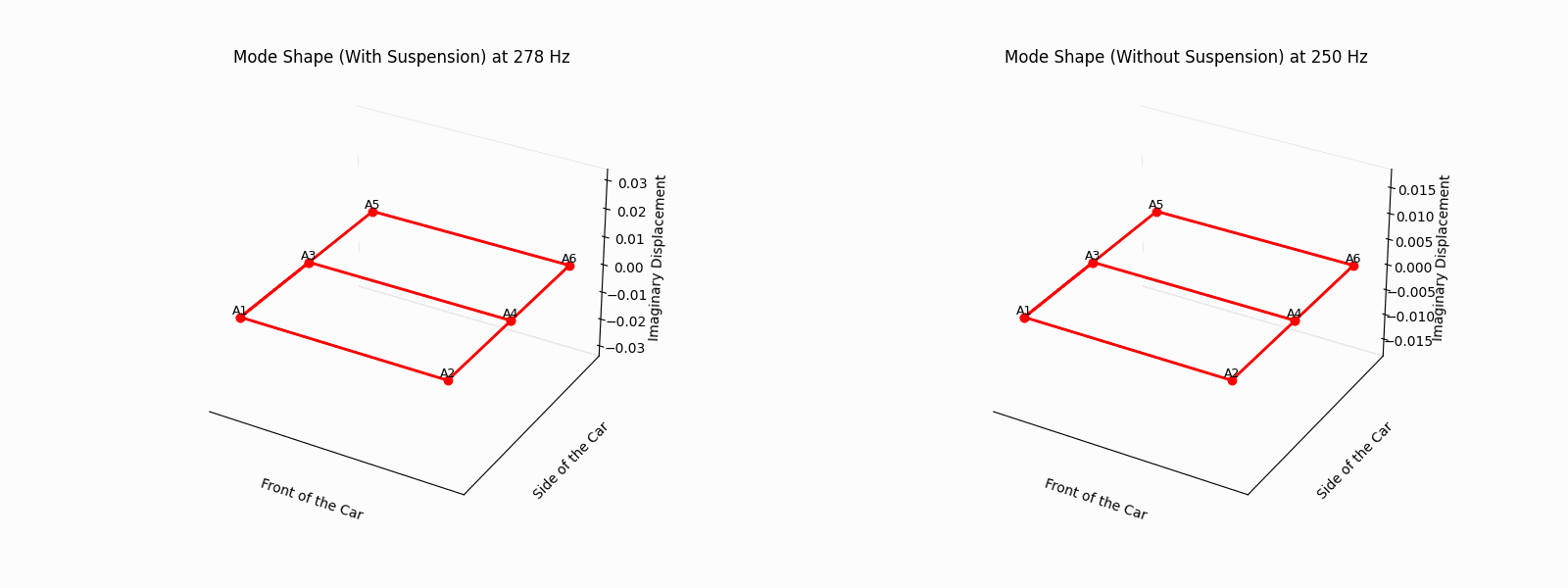

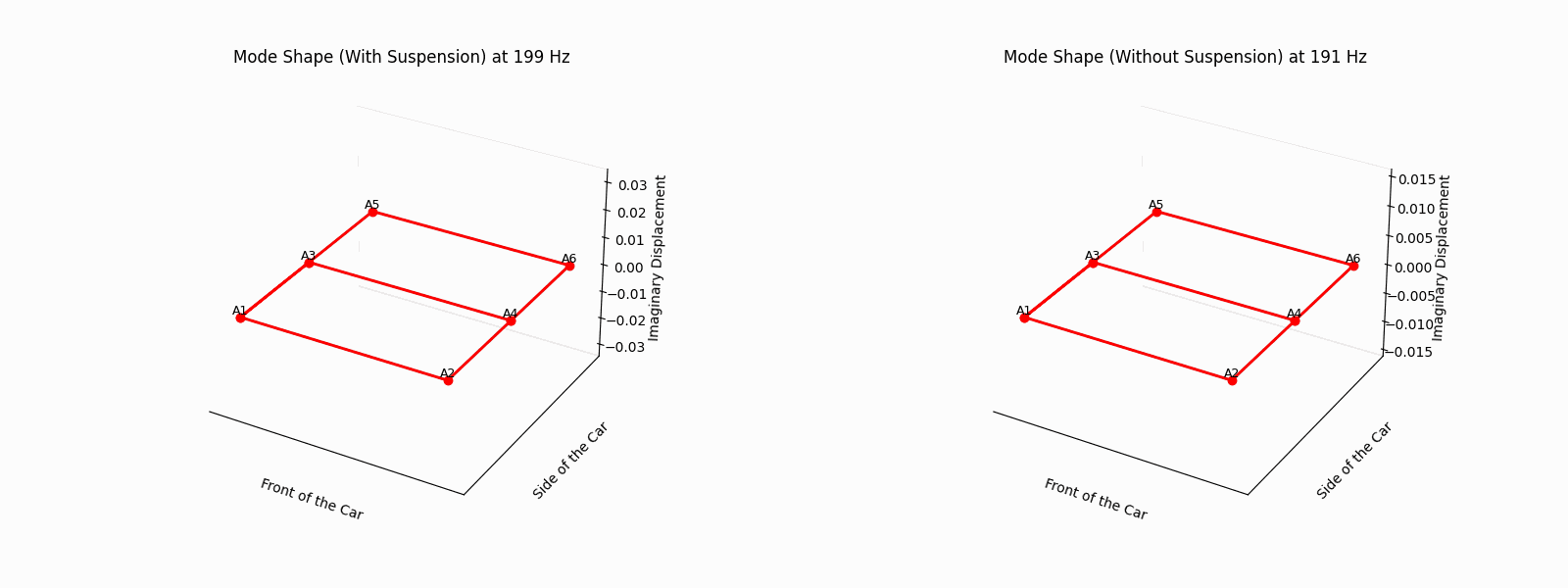

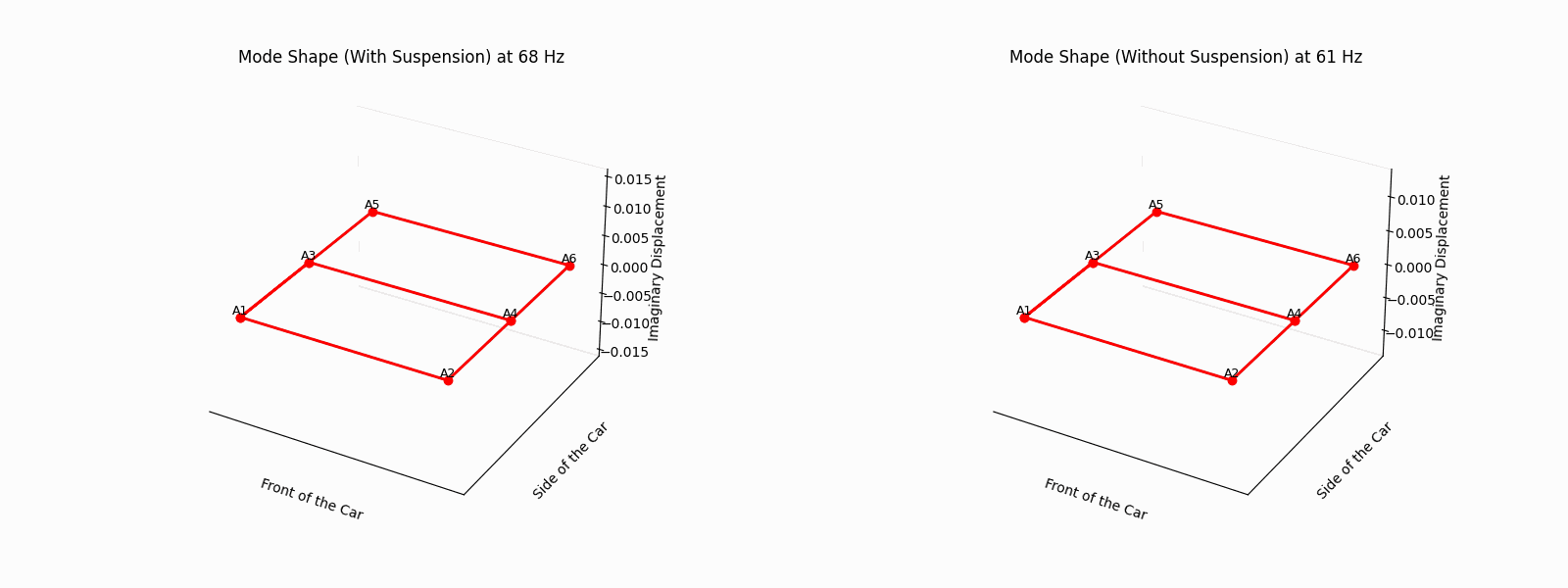

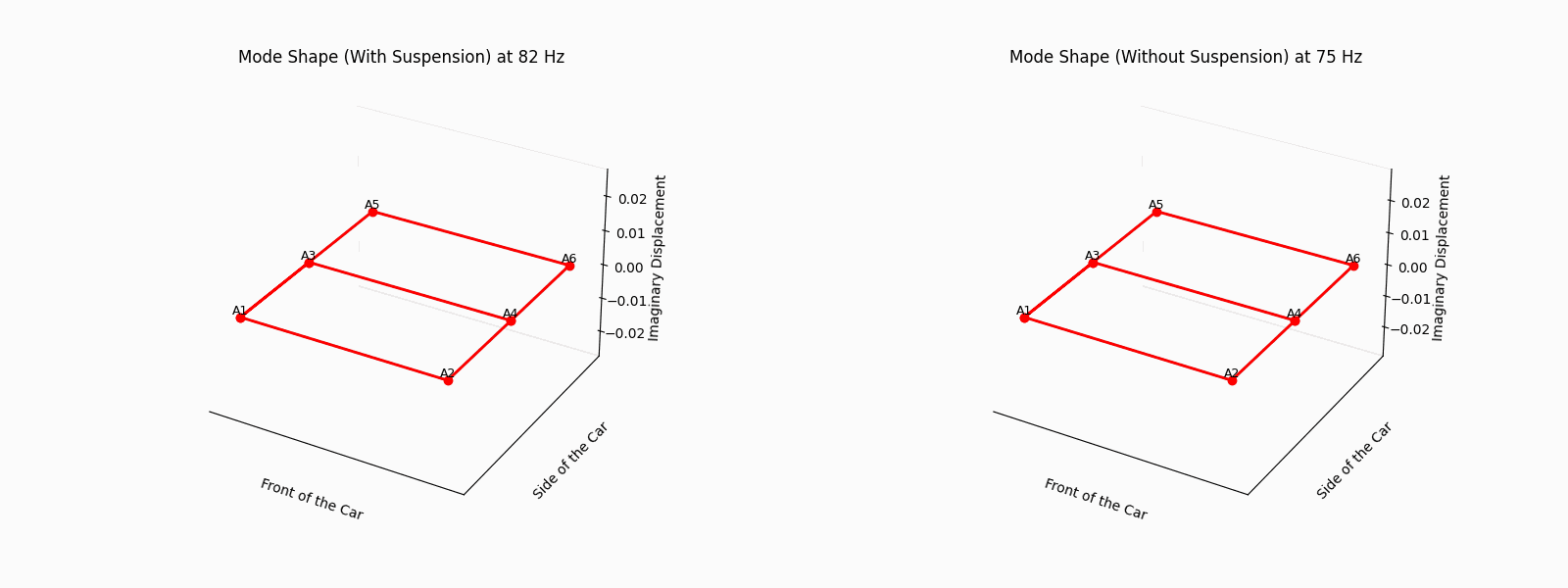

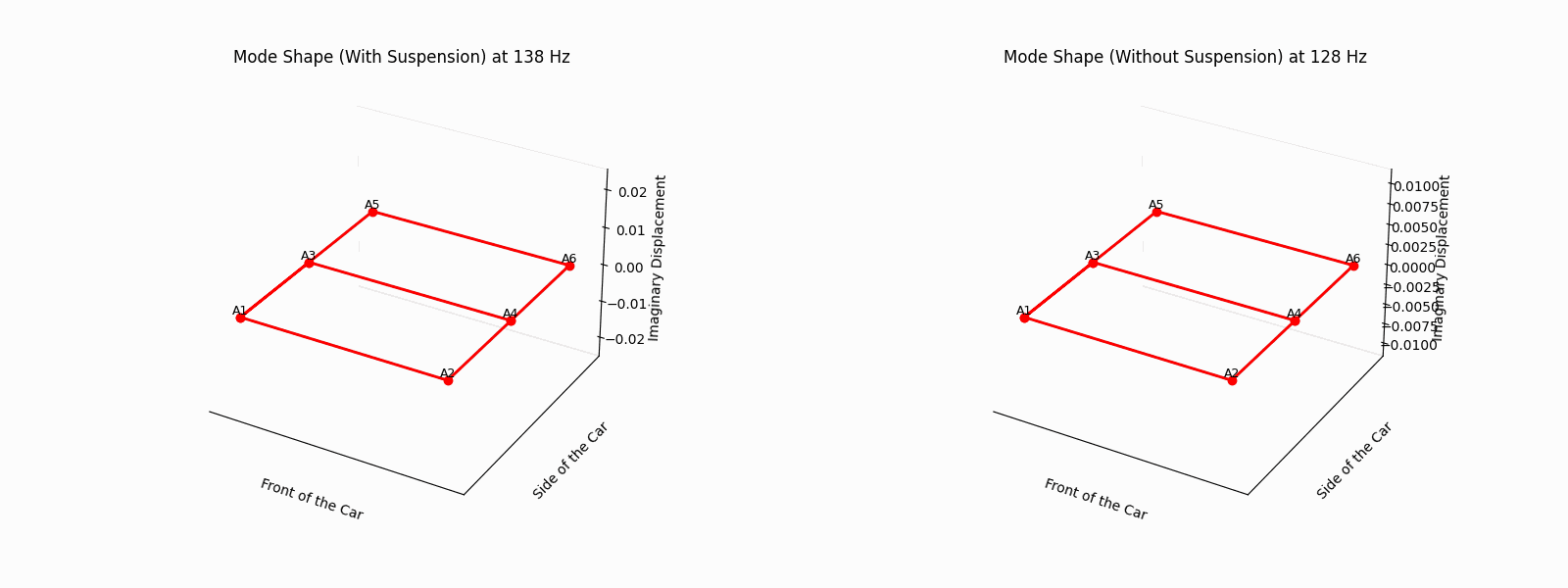

Animated Mode Shapes
